Available in 2-3 weeks, please contact us to find out more

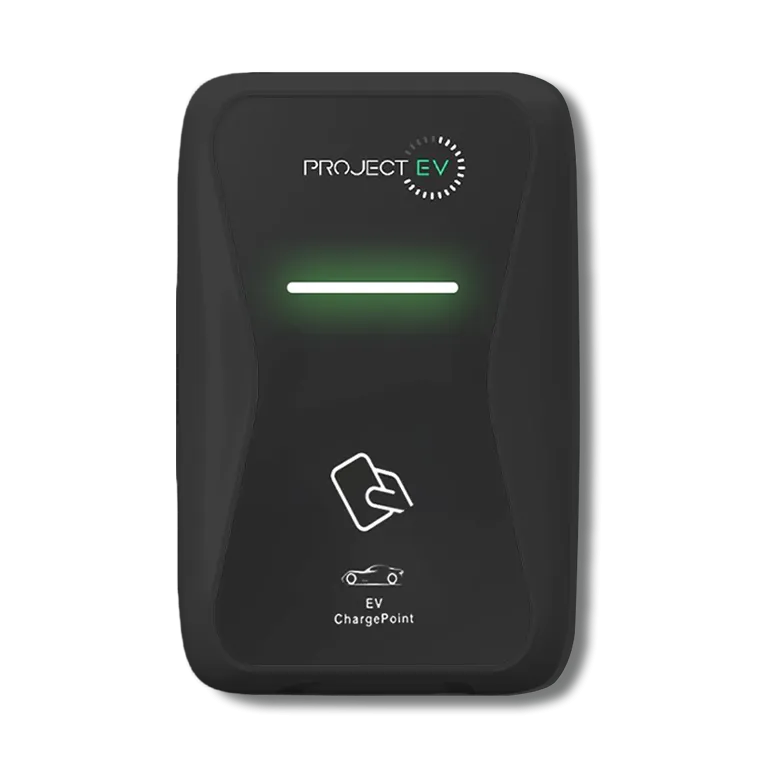

Project EV EVA-07S-SE-RFID-4G 7.3kW Pro Earth Wall AC Electric Vehicle Charger Single Gun RFID - 4G & SIM (5 Years)

The EVA-07S-SE-RFID-4G is a single-phase, fast AC electric vehicle charger, that comes with built-in Pro Earth protection, meaning the charger does not require the addition of a costly earth spike installation.

Our 7.3kW pro earth charging unit comes packed with features as well as a market-leading five-year warranty. Complete with a compact sleek design and solar compatibility; this charger also has time-shifting capabilities giving you the opportunity to save £100’s per year*.

With a CT clamp included as standard, to enable dynamic load management and solar capabilities via the charger settings, the EVA-07S-SE-RFID-4G is ready out of the box and perfect for any domestic electric vehicle charging. The RFID unit comes with one RFID card as standard, with additional RFID cards (EV-RFID) available for purchase. Optional ground mounts (EV-GMEVA-S-2) & optional floor stands (EV-FLRSTAND) are available to purchase.

METHODS OF CONTROL

Plug & Charge - Project EV’s ethos is to make charging electric vehicles easy and stress free for all. With the Plug and Play mode you do not require any additional software or applications to control your EV charge point, you simply plug your car into a Project EV device, and the charge begins.

RFID - RFID Mode Charging is an easy simple way for uses to control their EV Charge Point with a swipe of a card. One RFID card is supplied as standard, however extra cards can be supplied for those interested in public charging.

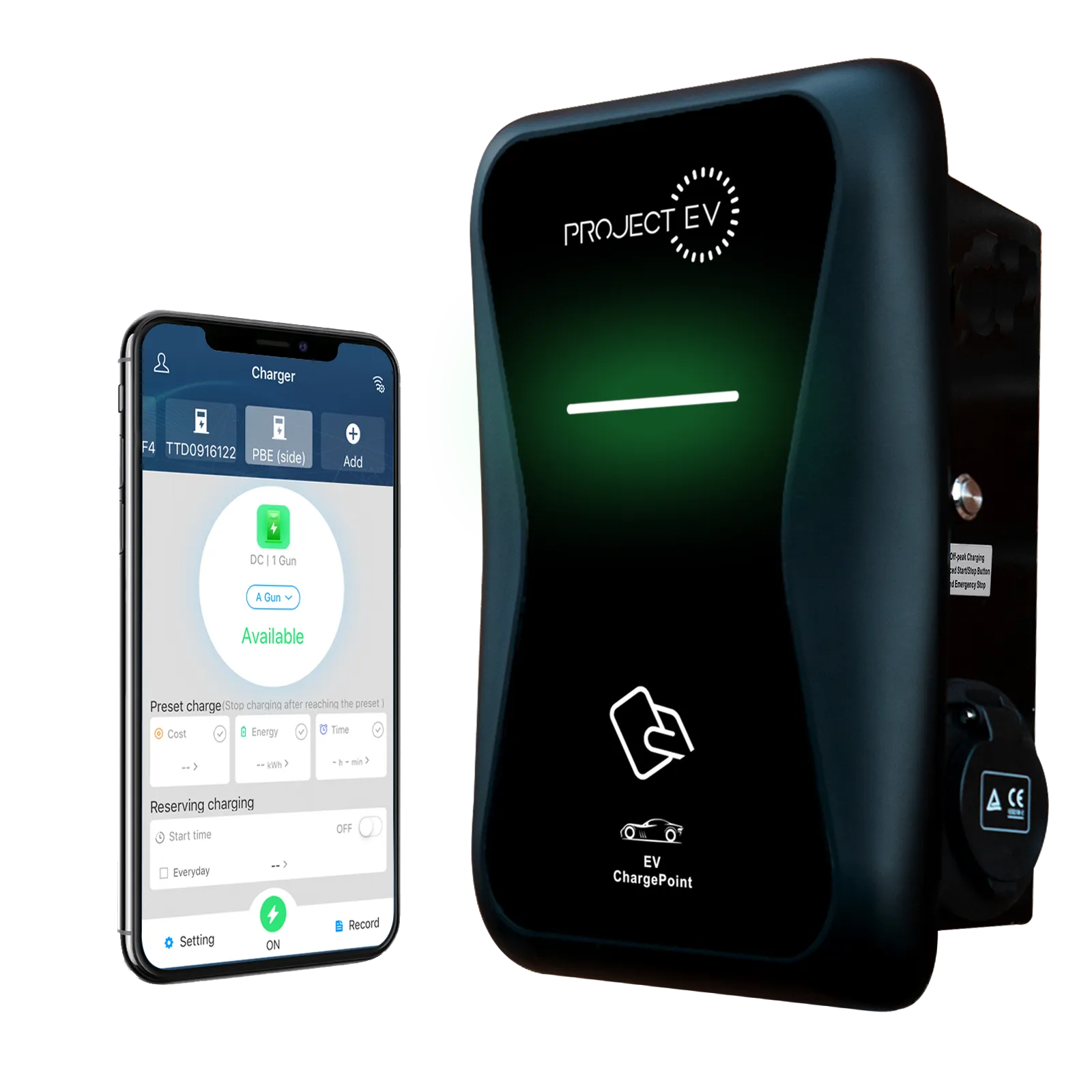

Project EV App - The FREE Project EV App allows you to choose and customise charging rates, prioritise off-peak charging to maximise savings (including via a solar charging mode) and create charging records; so you can see and control all your data.

Project EV Pro App - The Project EV Pro App is a unique EV charging platform, providing you the ability to utilise public charging capabilities and manage and control multiple chargers - from which you can generate a fluid revenue stream.

Features:

• Input Amps: 32a Single Phase
• Input voltage: 230V AC
• Input frequency: 50/60HZ
• Output voltage: 230V AC
• Max. output power: 7.3KW
• Max. output current: 32A
• Charging interface type: IEC 62196-2, Type 2.
• Ethernet/WIFI/4G: Yes/Yes/Opt
• Outlet Type: Type 2 (socket)
• RCBO: Type A 6mA DC fault current protection (Equivalent to Type B)
• RFID: Yes
• Protection degree: IP65.
• Wall-mounting: Standard
• Floor-pole: Opt. EV-FLRSTAND
• Grount-mounting: Opt. EV-GMEVA-S-2
• Dynamic Load Management: EV-CTCLAMP (inc.)

Data Sheet:

Brochure:
